| Varenr : |
50227 |
|
| Enhet : |
stk |
|
| Listepris : |
7 990.00 |
|
| Antall Pakke : |
stk |
|
| Vekt : |
.0000 Kg |
|

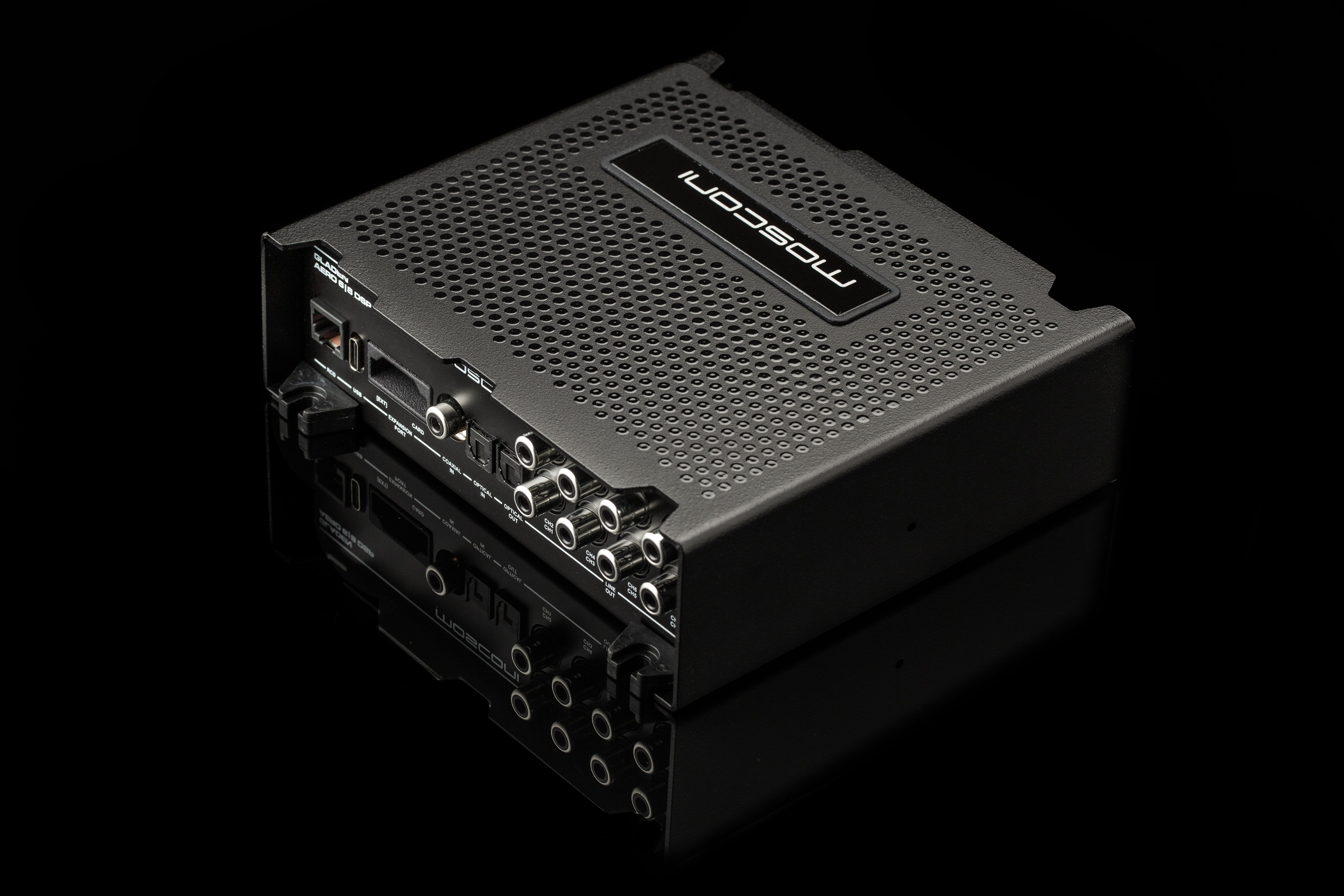

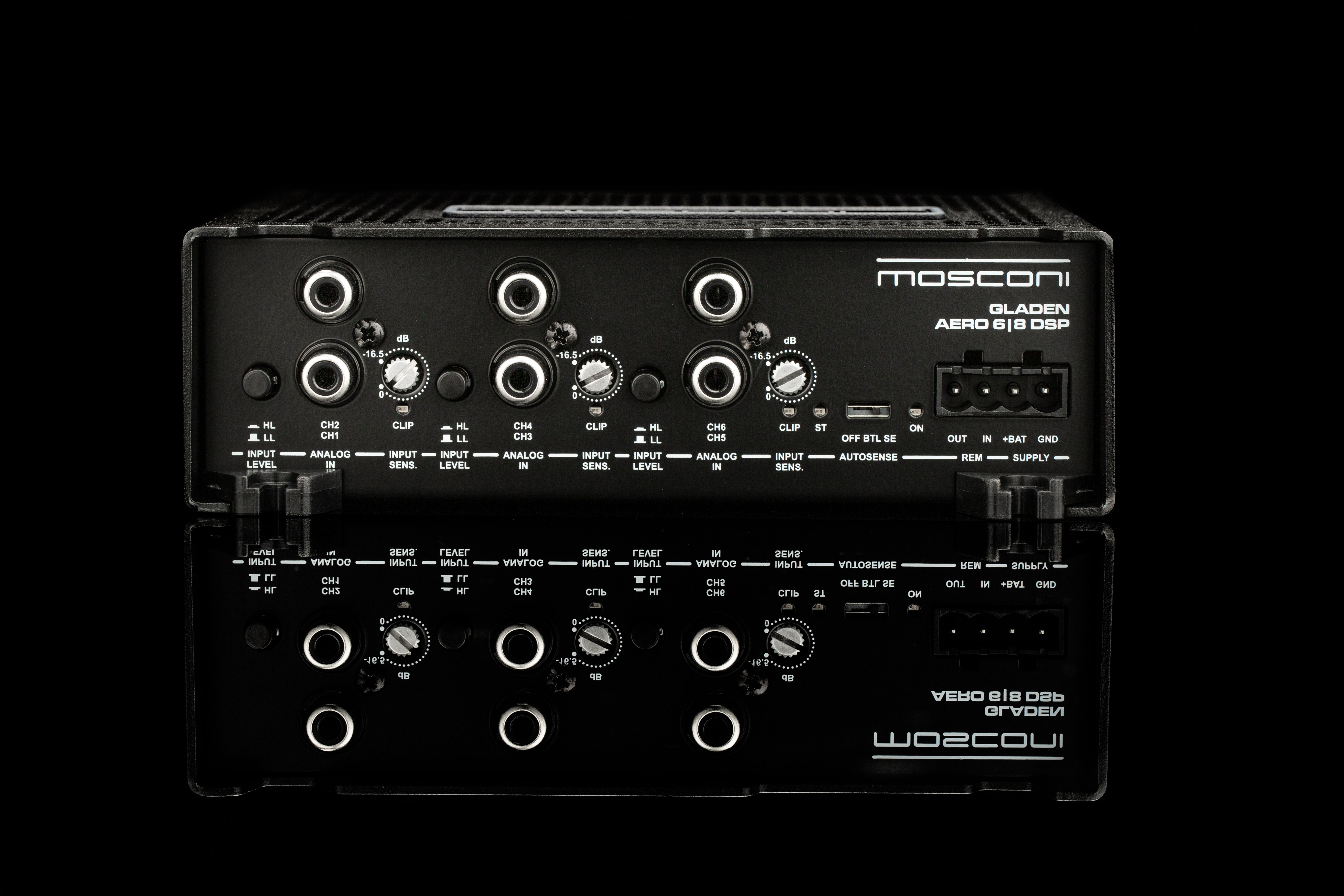

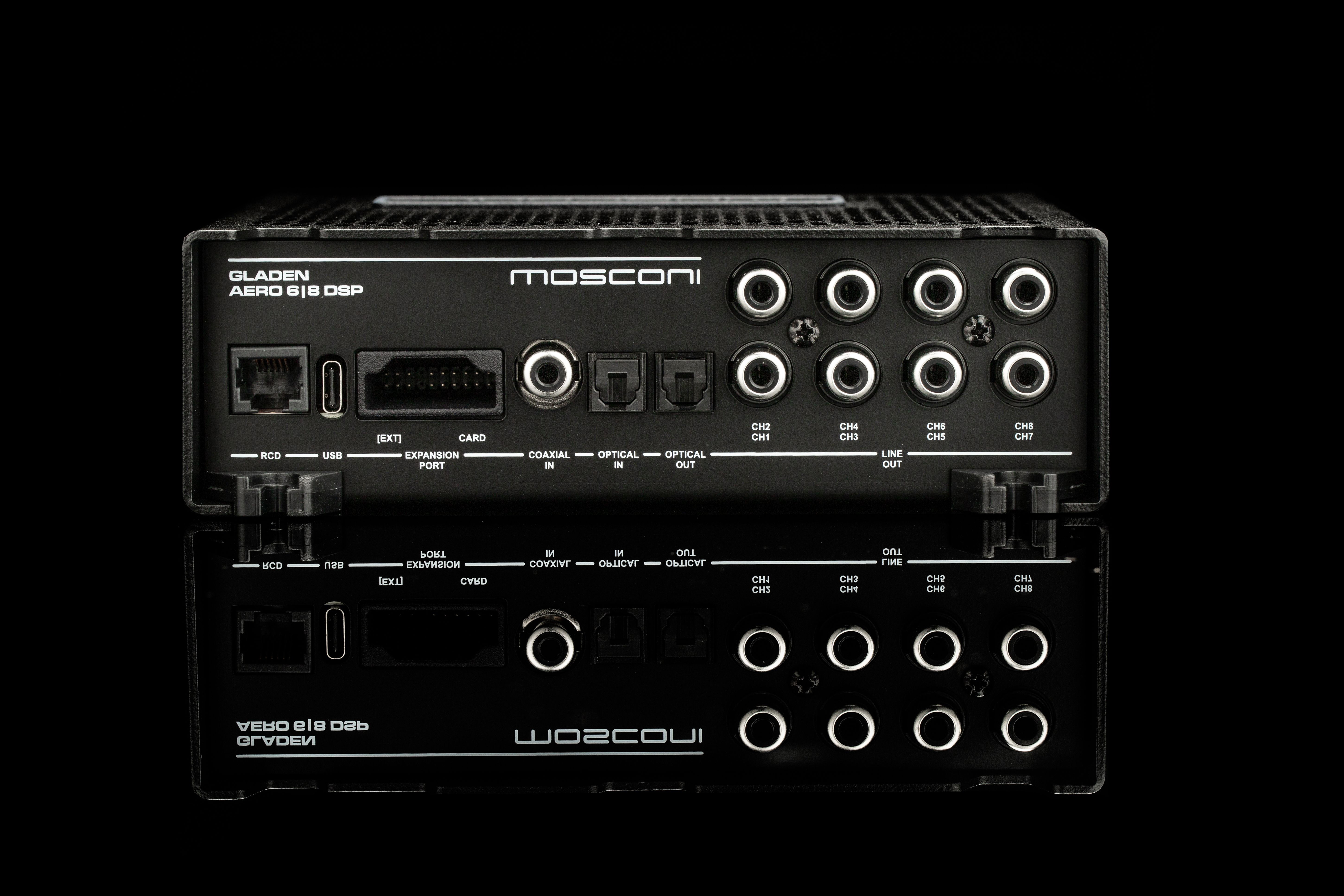

- Audophile Digital Signal Processor
- 6 kanals inngang
- 8 kanals utgang

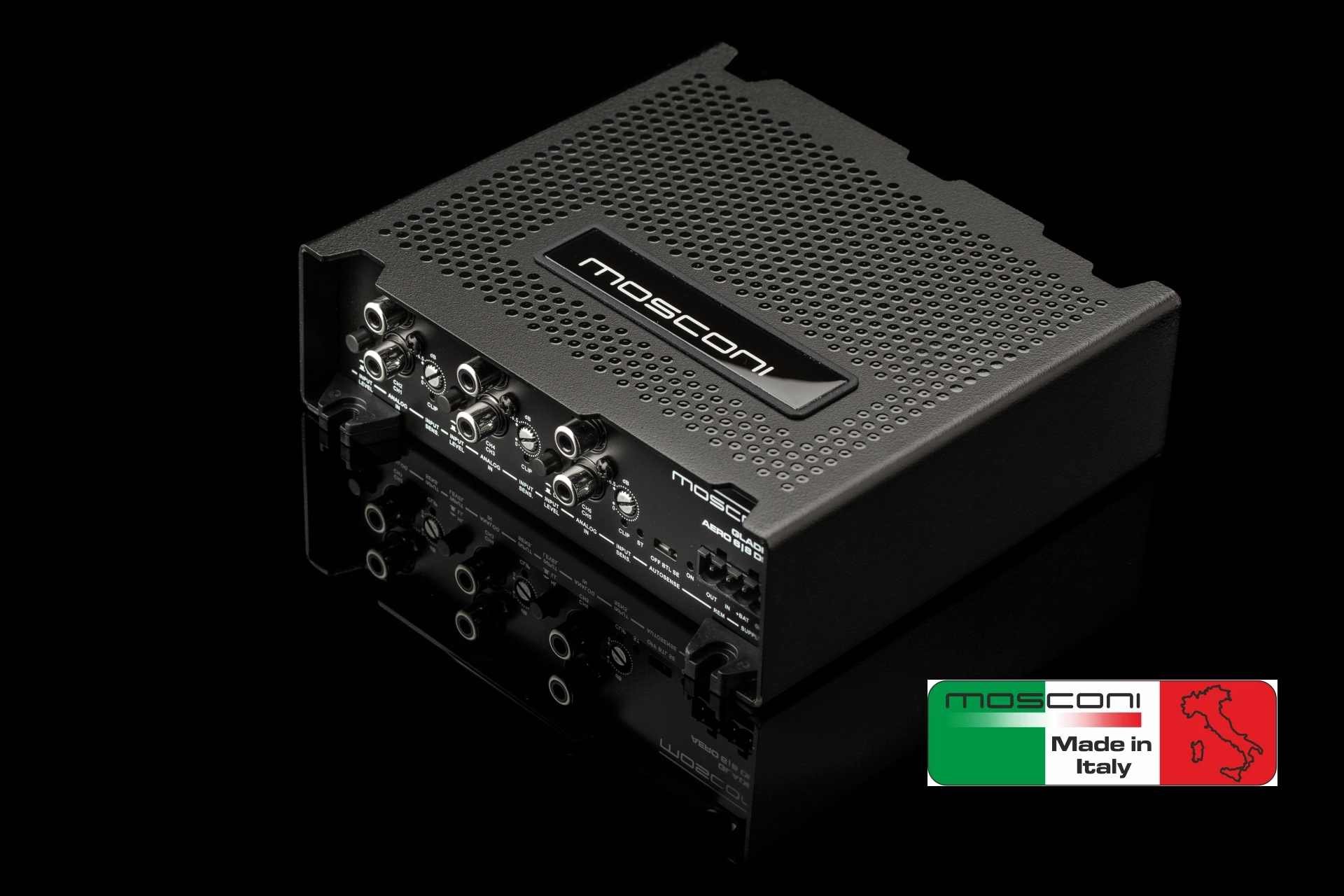

- Audiofilversjon produsert i Italia
-
- Specifications
- Power supply voltage: 10V / 16V (6V tolerant to sustain engine crack)
- Current consumption: 0.9A @ 12V
- REM output: 100mA max. (internally linked)
- Autosense: OFF / BTL / SE
- Analog inputs: 6 (RCA)
- Digital inputs: 1 coaxial (RCA), 1 optical (toslink), BTS_LD4C (optional
- Analog outputs: 8 (RCA)
- Digital outputs: 1 optical (toslink)
- Input regulation: -16.5dB / 0dB
- Low level + High level input sensitivity range: 1.2Vrms / 8Vrms (LL) / 4.5Vrms / 30Vrms (HL)
- Input impedance: 12Kohm (LL) / ~6ohm (HL)
- Max output signal: 8Vrms
- Output impedance: 600 ohm 100dB “A” (typ. 105dB “A”)
- Thd distortion: <0.003% @4Vrms
- Frequency response: 10Hz / 40Khz
- Channel separation: >90dB (@ 100Hz) / >90dB (@ 1Khz) / >80dB (@ 10KHz)
- Native sample rate: 96Khz / 24-bit
- DSP performance: 294.912Mhz, 32-bit SigmaDSP
- Adc performance: Advanced Multi-bit Delta-Sigma Architecture 24-bit Conversion
- 107dB Dynamic Range / -93dB THD+N
- Dac performance: 112dB Dynamic Range / -94dB THD+N
- Connectivity: USB C, RCD/RC-Mini (optional), MOS-BTM (optional)
- Dimensions / Weight: 155x140x48mm / 0.85Kg
-
- NETTSIDE PRODUSENT
Alle priser ink.mva
|
